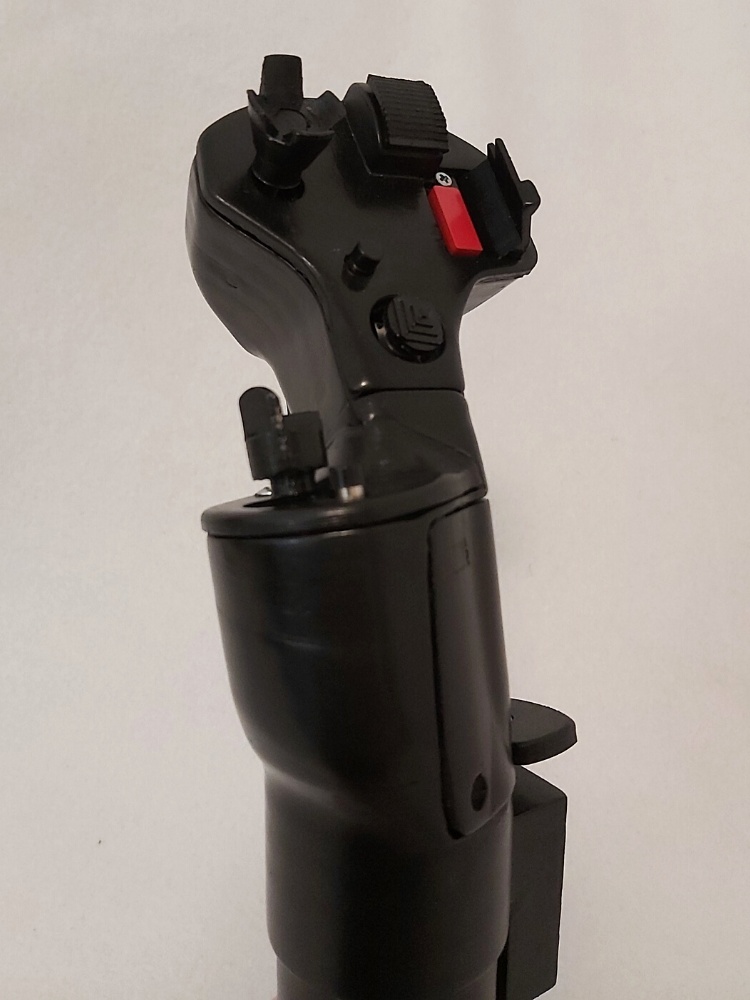

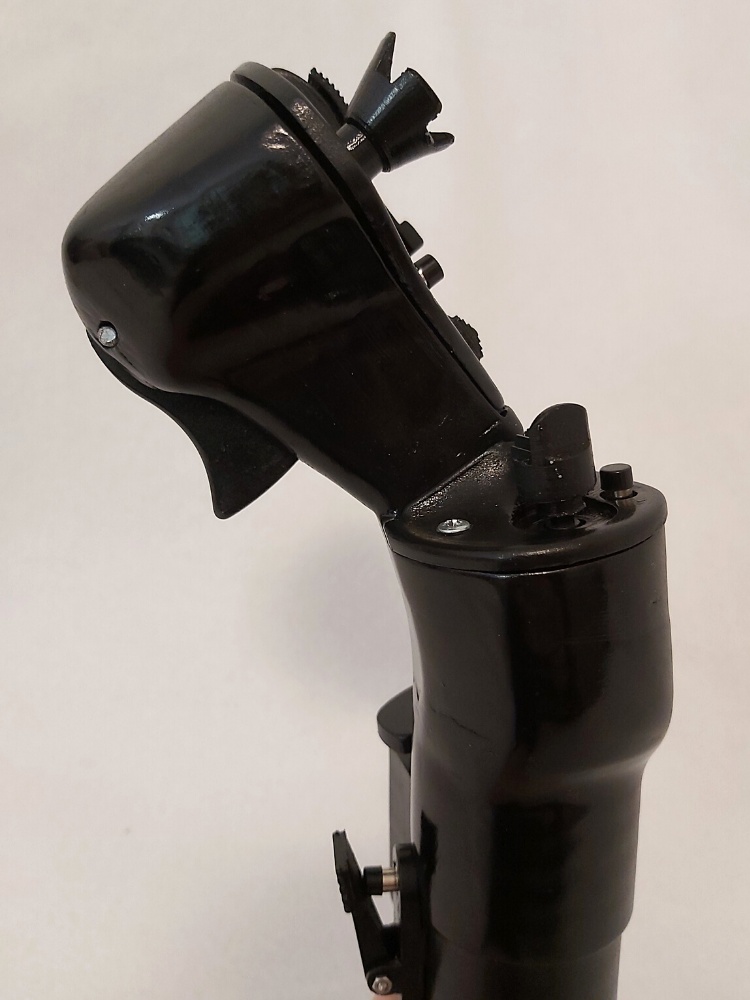

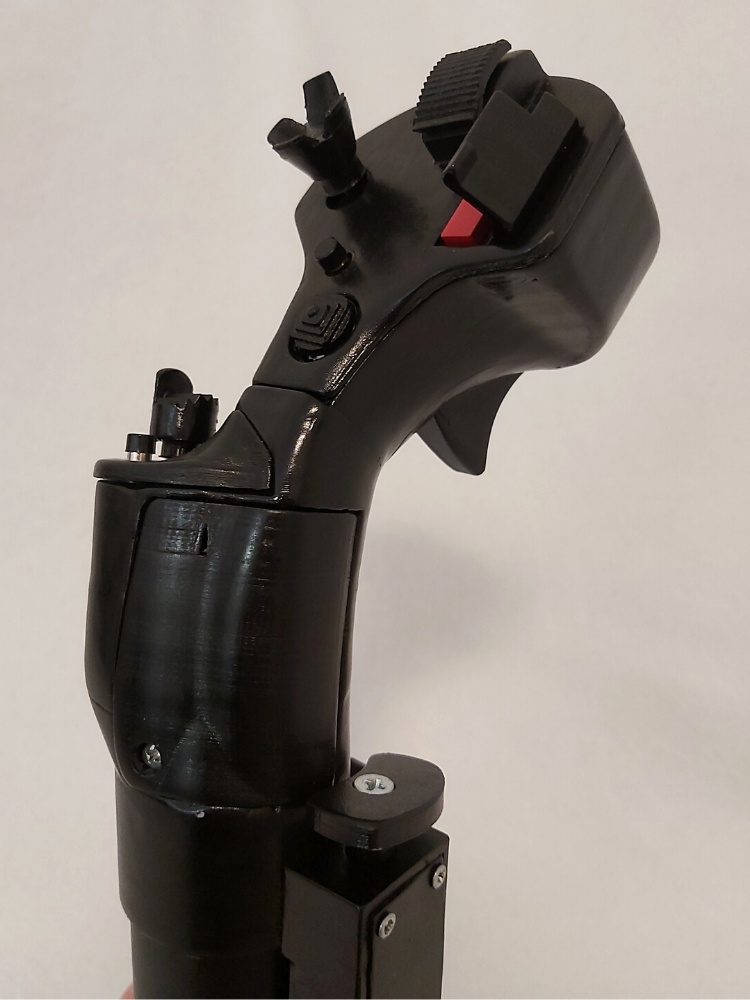

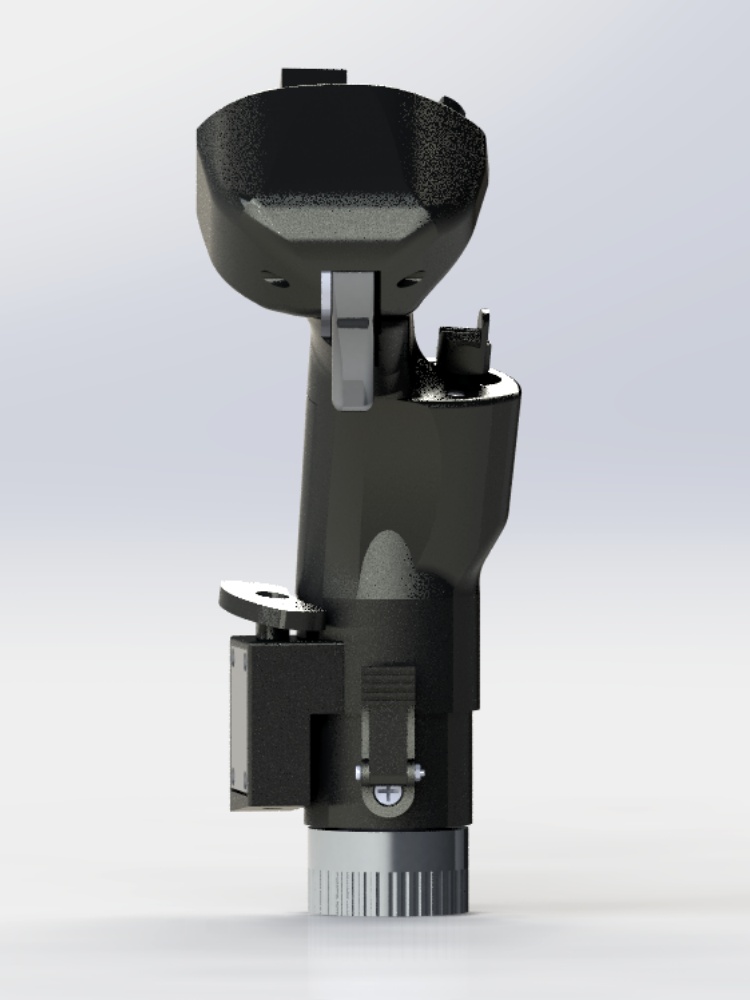

This is a Eurofighter Typhoon stick model replica. The model includes all electronic parts needed for 3d-printing and assembling a fully functional stick that operates with flight simulations.

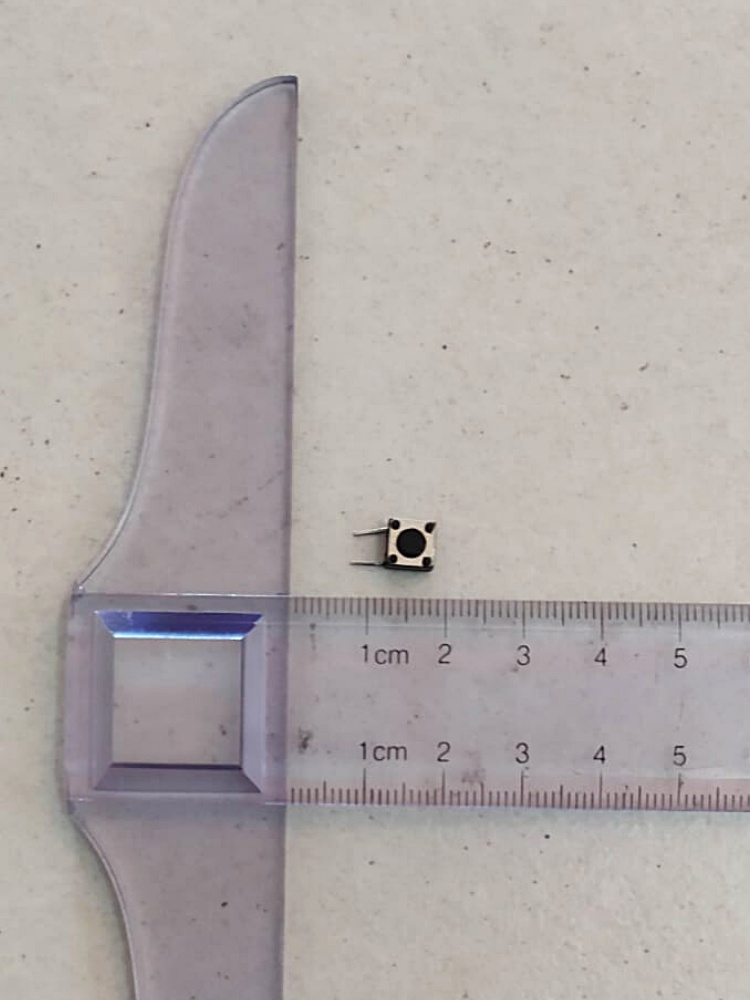

All electronic parts are standard parts, as can be seen in the pictures.
Model includes space for a 34.3 X 37.8 mm electric card.
The bottom tightening nut fits the Thrustmaster Cougar / Warthog stick base.
File Formats Included:
STL - 48 STL files, in 1 zipped file
STEP - 1 zipped STEP file
PARASOLID - 1 zipped X_T file
Mechanical parts needed for assembly:
- M4 bolt, length 30 mm HEX head with M4 nut - for main HAT.
- M4 bolt, length 50 mm cone head with M4 nut - for hand rest.
- M3 bolt, length 20 mm round head - for stick body.
- M2.5 bolt, cone head - for hand rest cover.
- Spring, diameter approximately 5 mm, length approximately 15 mm - for the first detent trigger.
- M3 bolt, length 20 mm cone head - for pinky switch housing.
- M2 bolt, length 18 mm with nut - for pinky switch lever.
- 2 mm pin - for pickle cover.
Electrical parts needed for assembly:

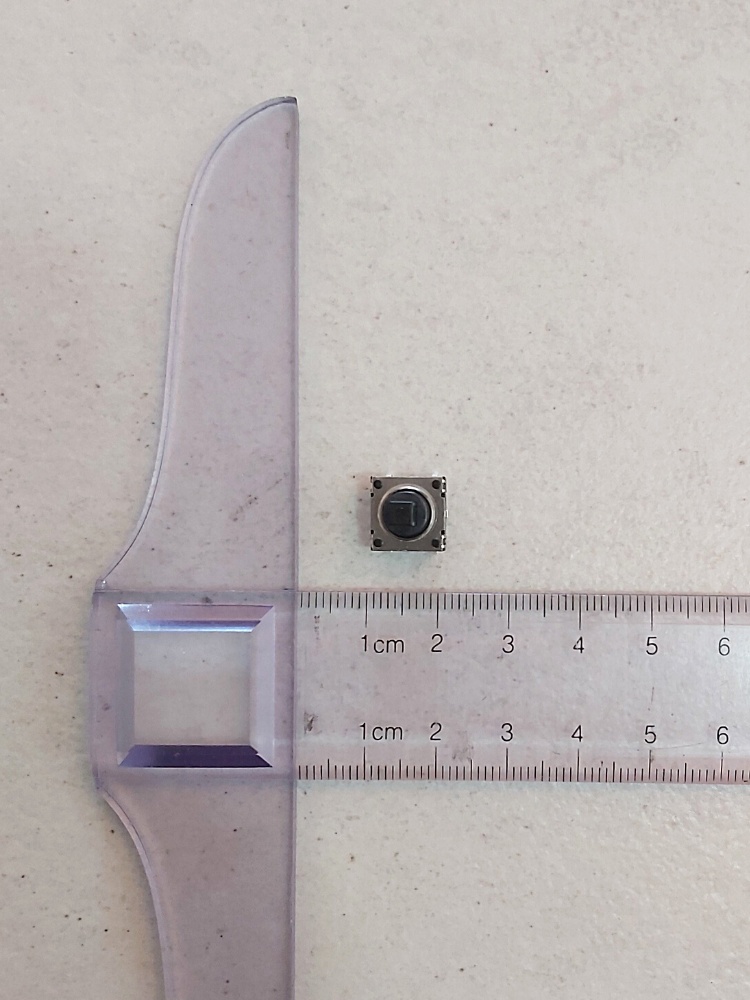

- 4 way Tact- for HAT switches.

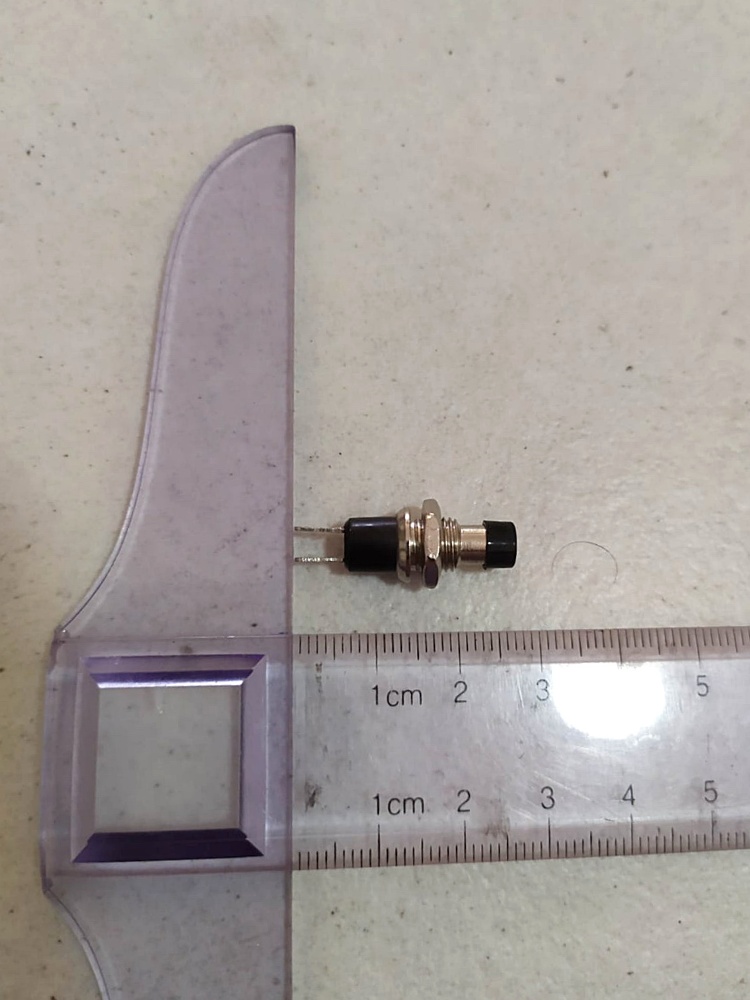

- Push Button Mini Switch - for 3 buttons.

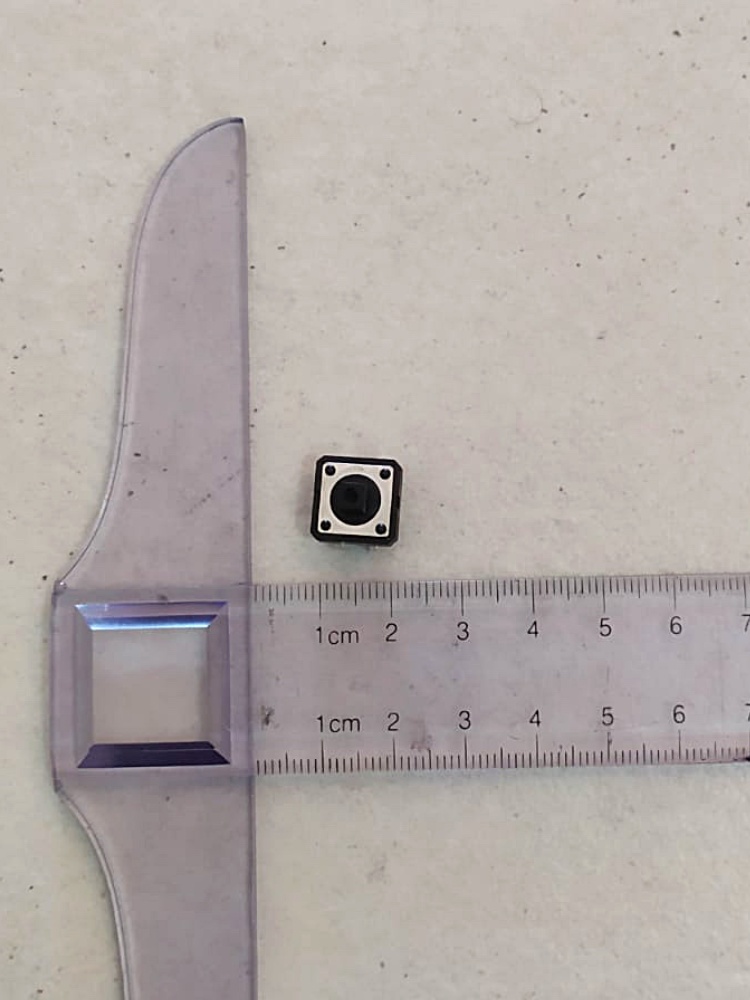

- Microswitch 12 mm - for the two stages trigger.
- Microswitch 6 mm - for pickle button.

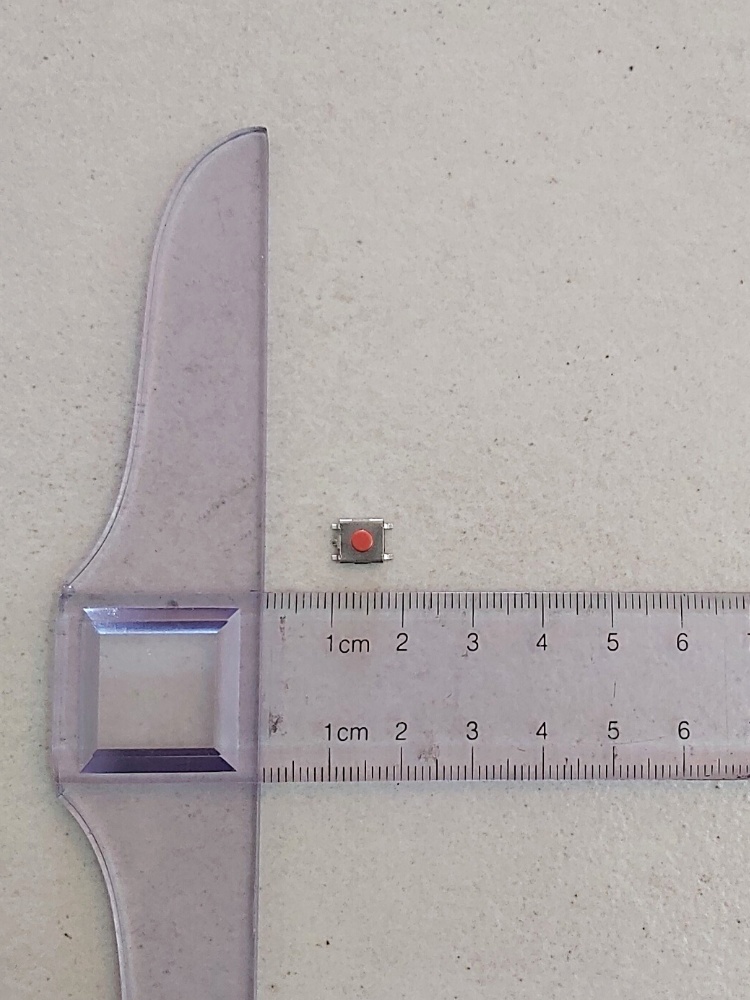

- SMD micro switches - for main HAT.
Printing Recommendations:
- For a metal feel of the grip - Use Aluminum infused PLA.
- Printing in normal setup:
- Layer Height: 0.12-0.22mm
- Printing Speed (for all parts): 50 mm/sec
- Temperature according to the printing material.
- All settings are relevant to Flashforge Creator Pro printer and may differ from one 3d printer to another.
