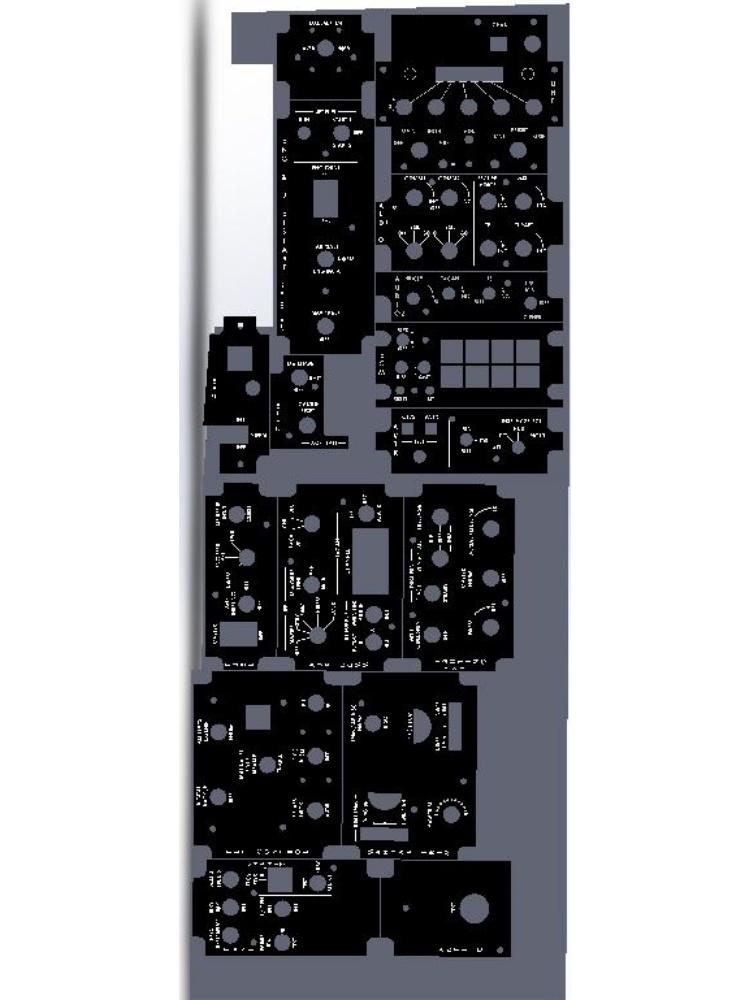

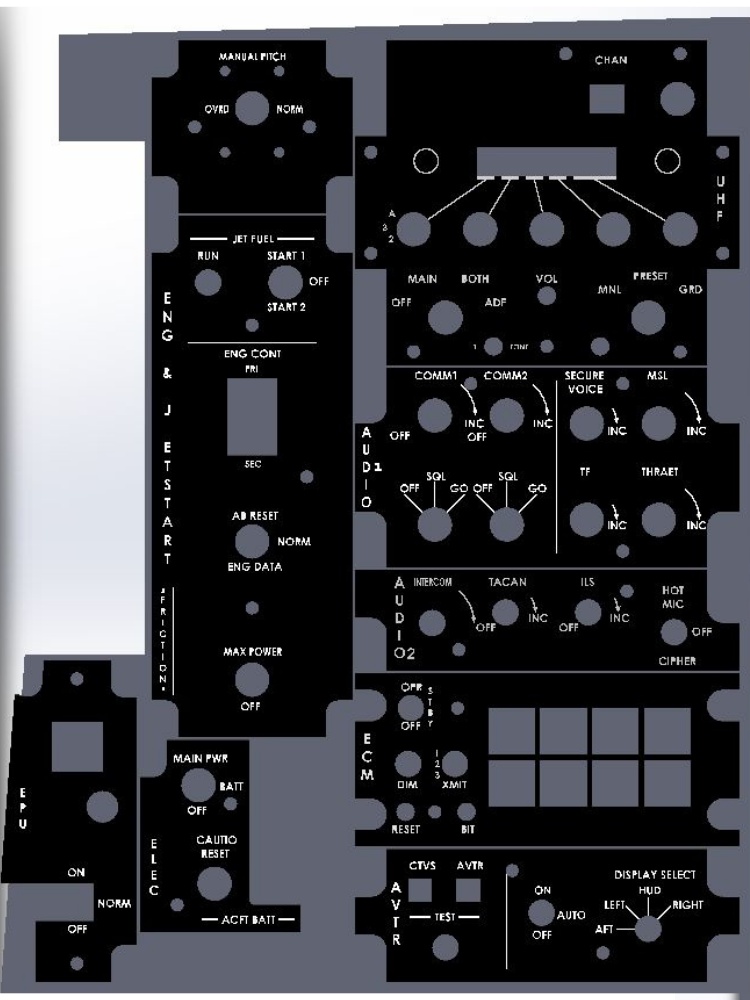

This is a bundle of 16 seperate models of panels of the F-16 left hand side console.

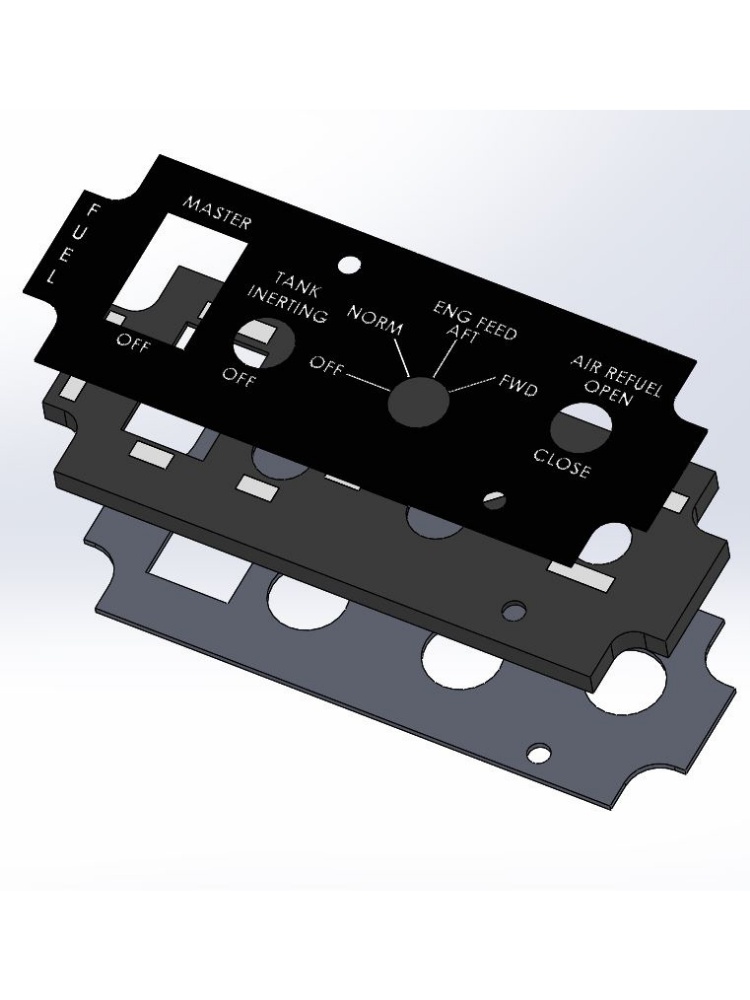

Each Panel consists of 3 parts:
- The base of the panel - Built from two parts: black base and white areas, that enable the backlight.
- Light panel - Thin back panel which holds the LED lights.

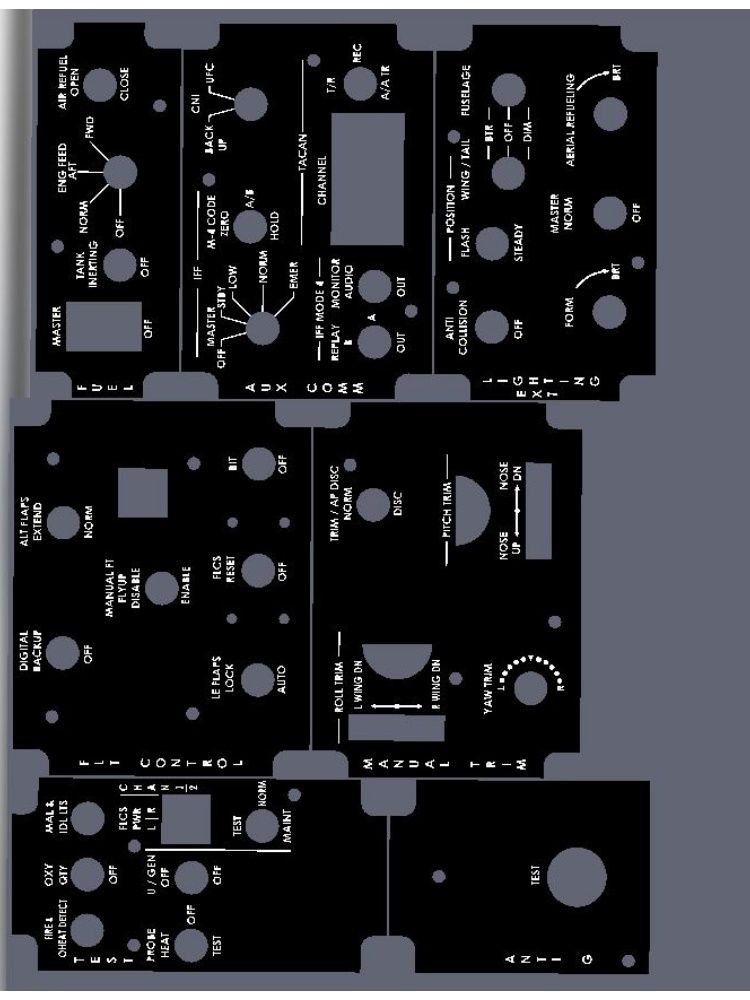

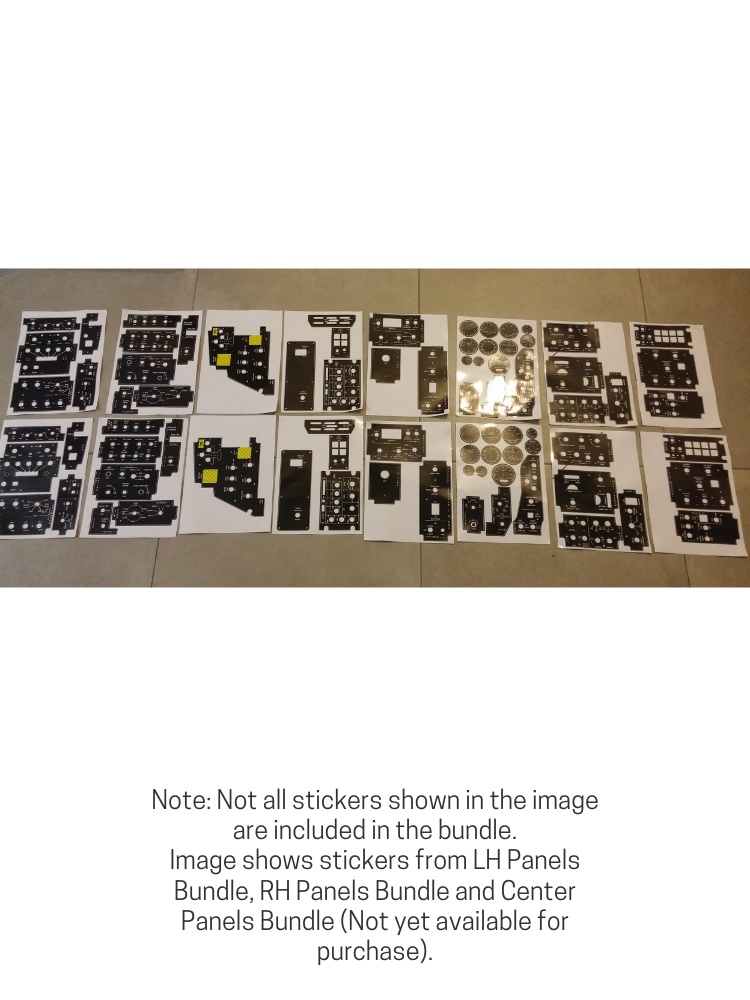

- Vinyl sticker - White background and black text print. The sticker page can be sent for printing on a vinyl paper at any printing house.

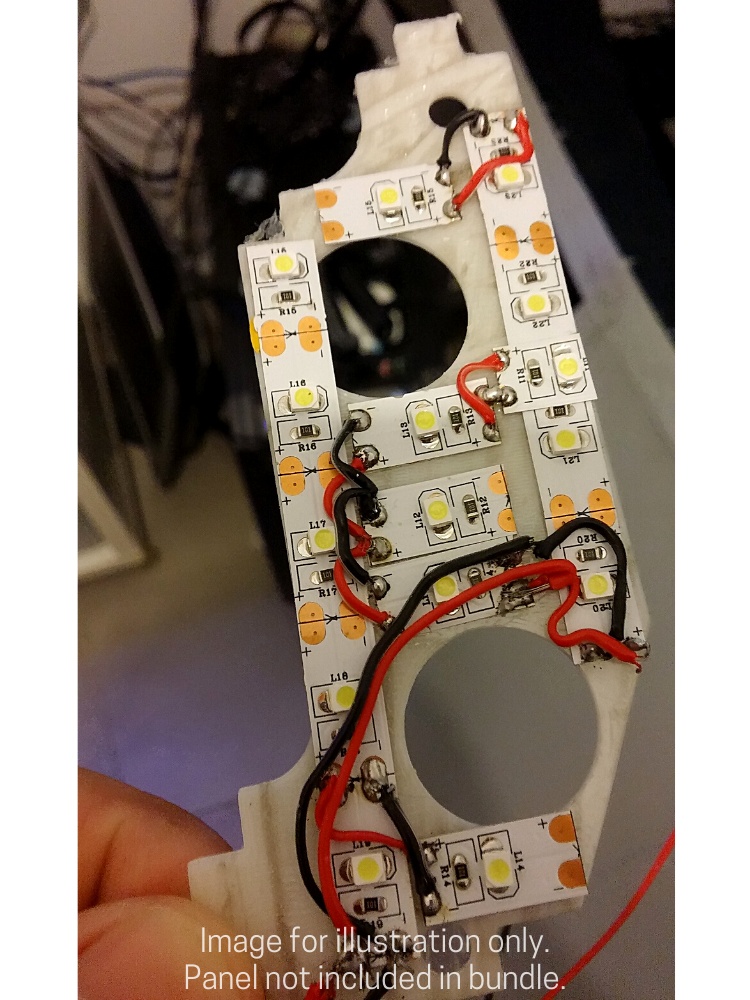

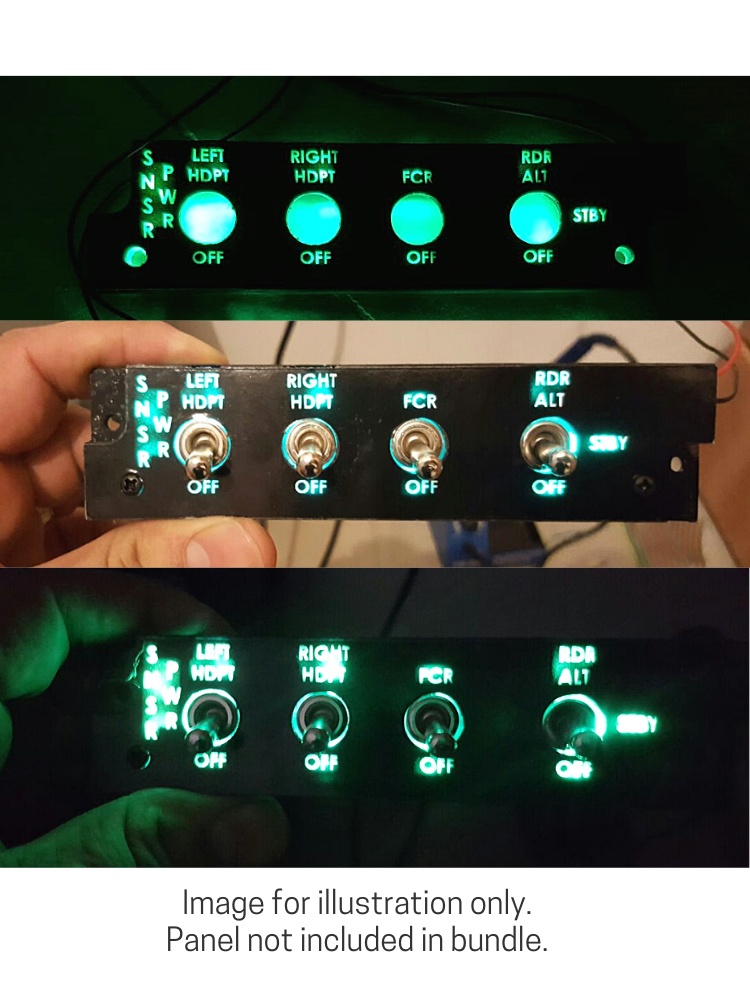

The backlight is based on a green / white LED strip that is attached to the light panel. The white areas in the base of the panel are corresponding to the text areas on the vinyl sticker, so the light from the LEDs will light only the text.
Bundle includes:

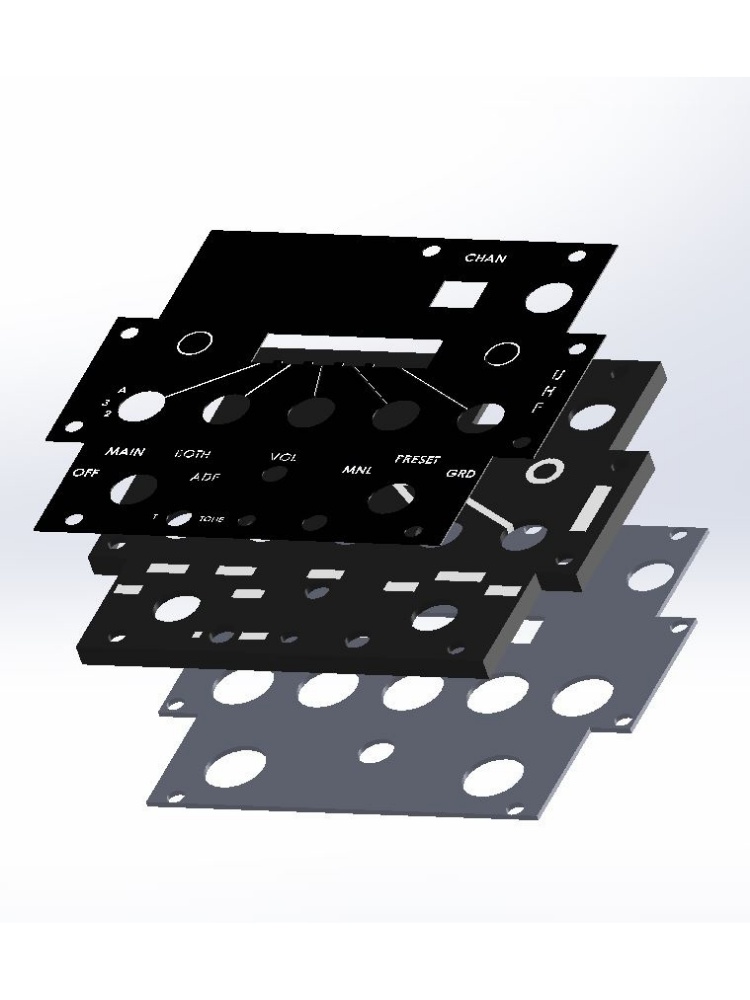

UHF Panel

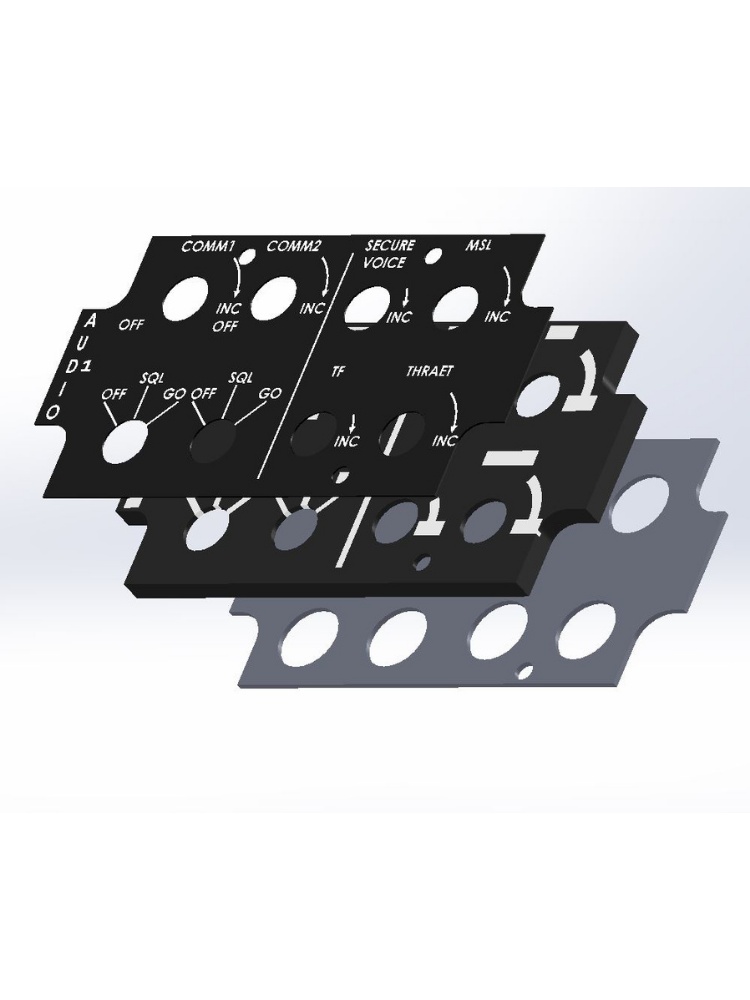

Audio 1 Panel

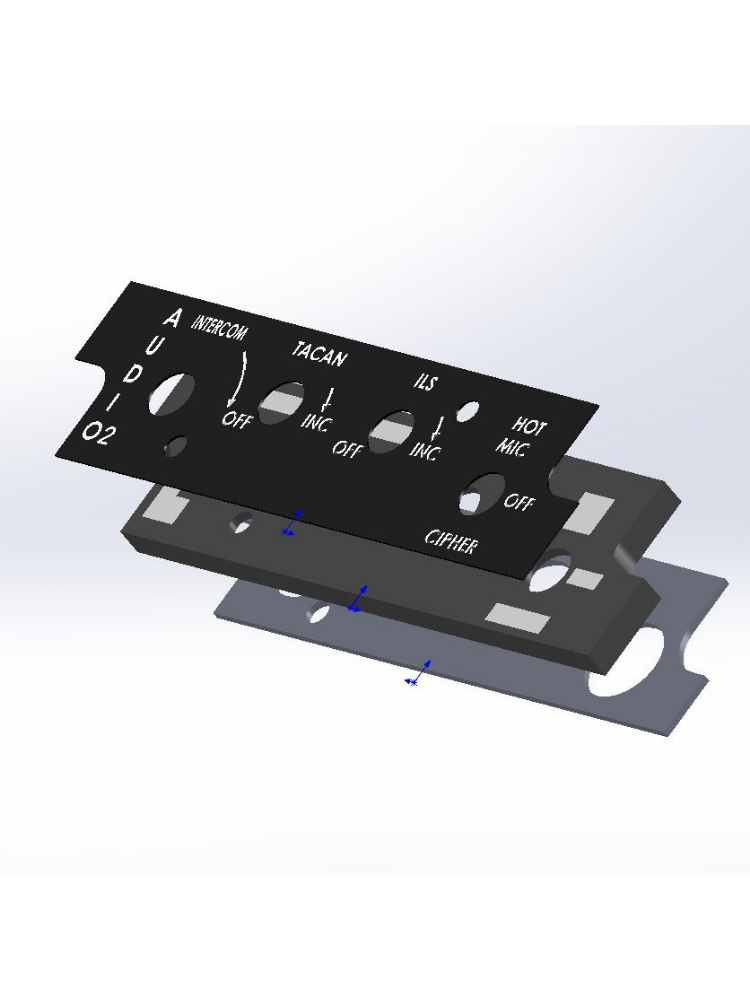

Audio 2 Panel

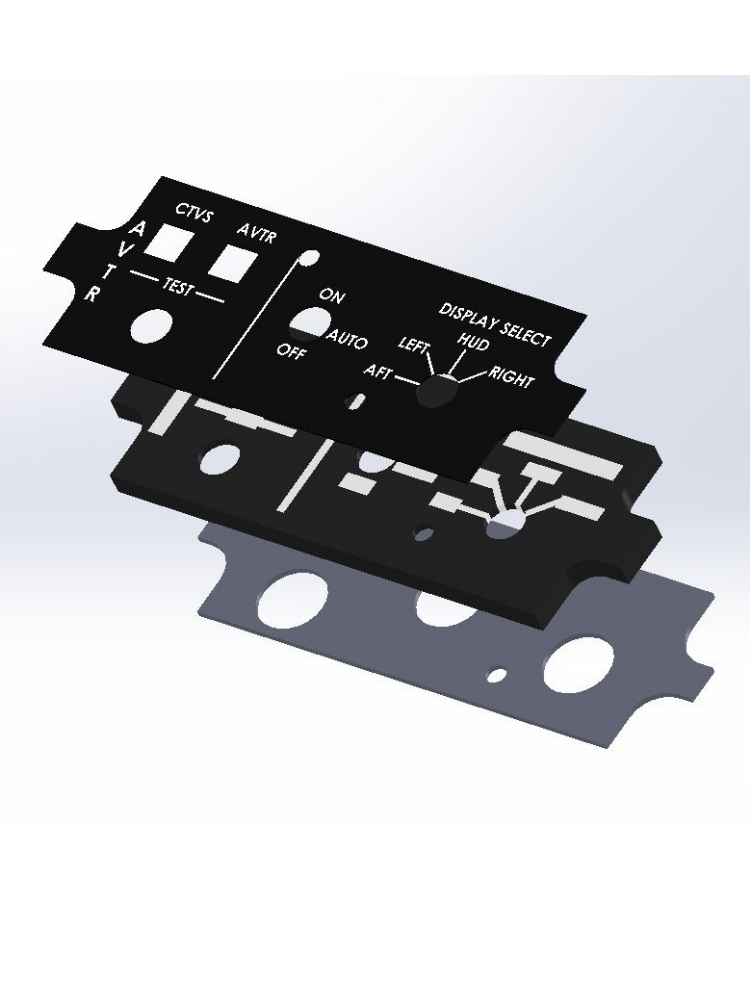

AVTR Panel

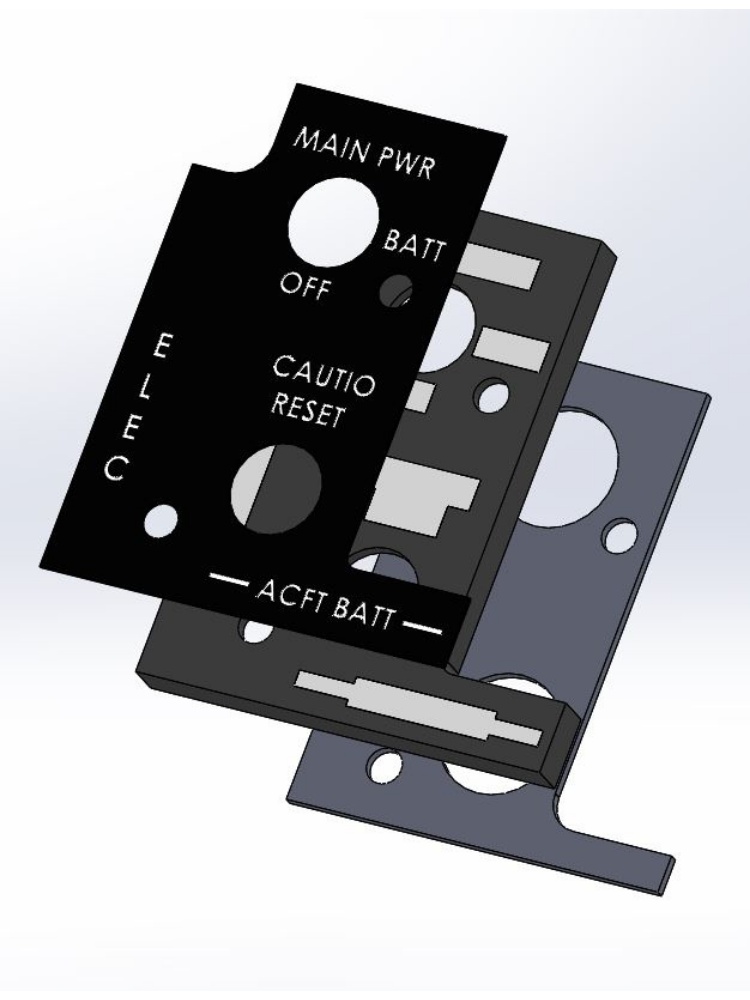

ELEC Panel

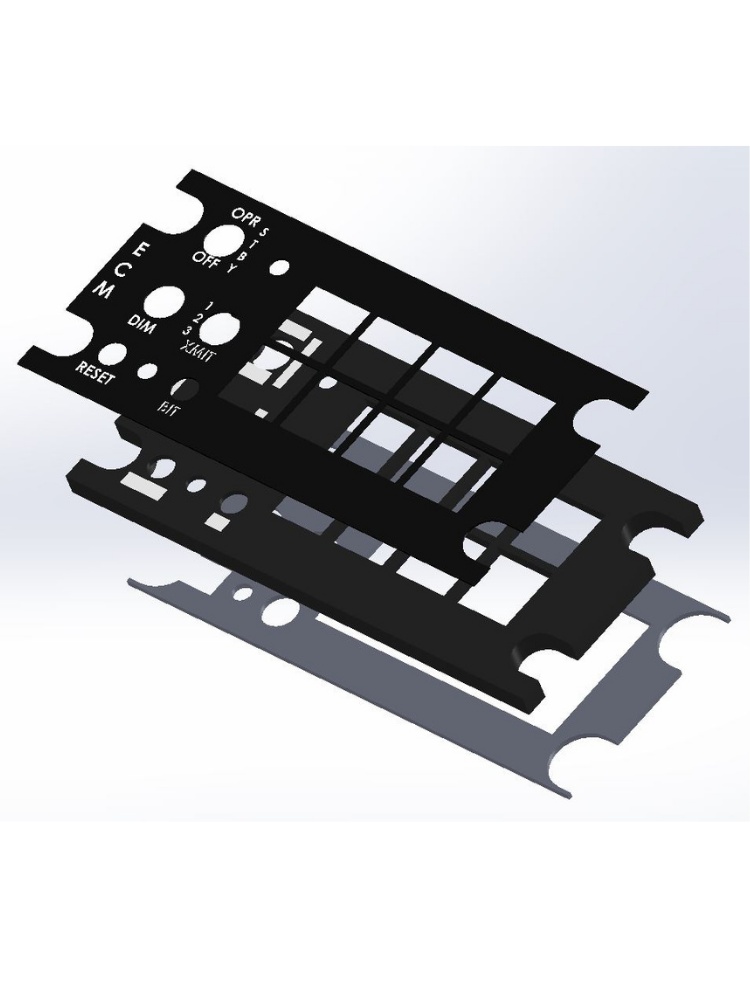

ECM Panel

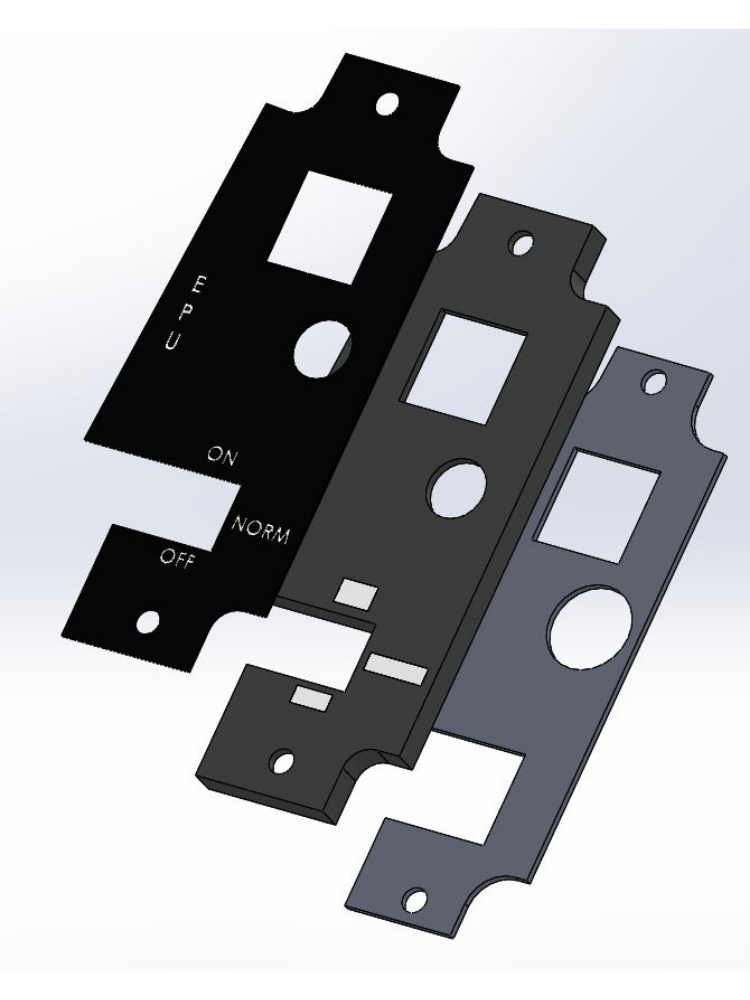

EPU Panel

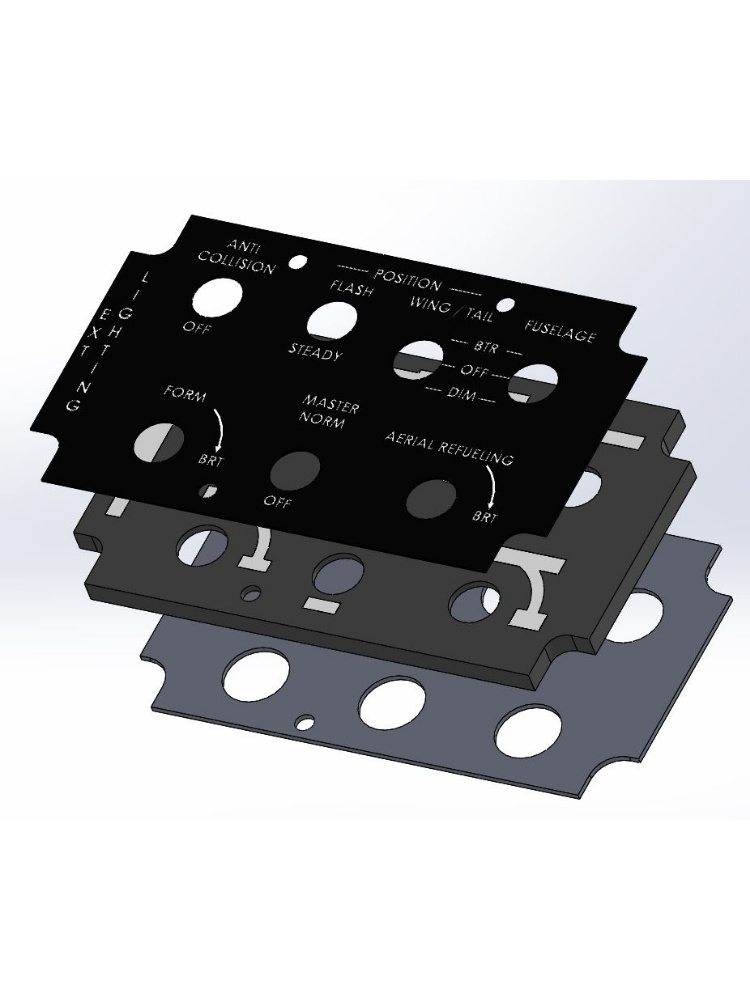

Ext. Lighting Panel

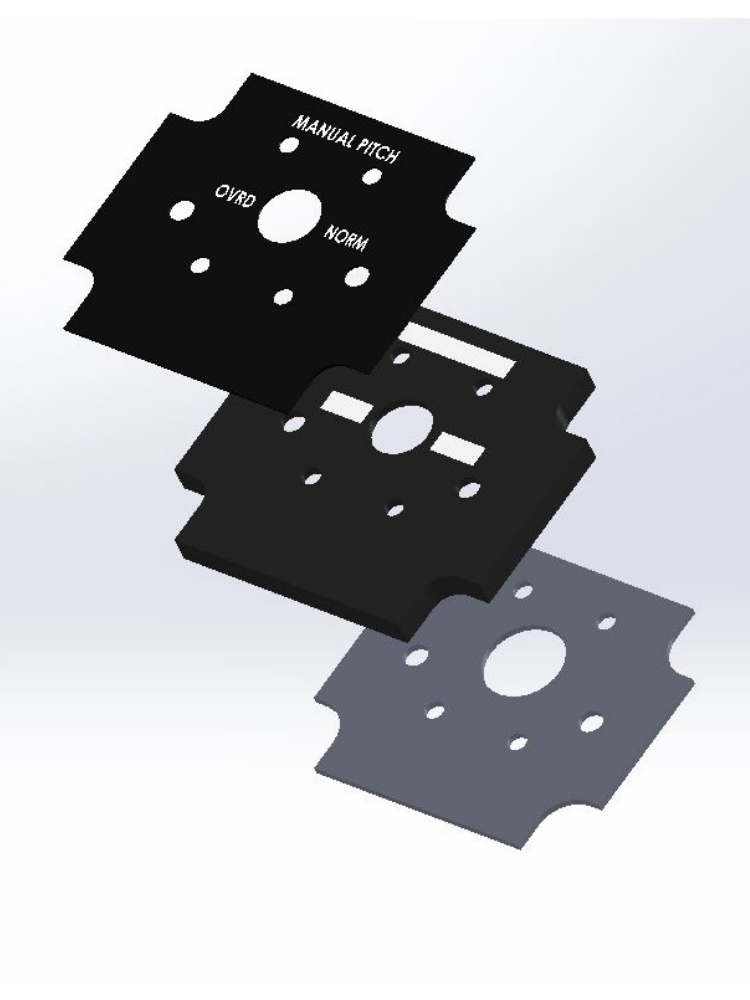

Manual Pitch Panel
ECM Panel

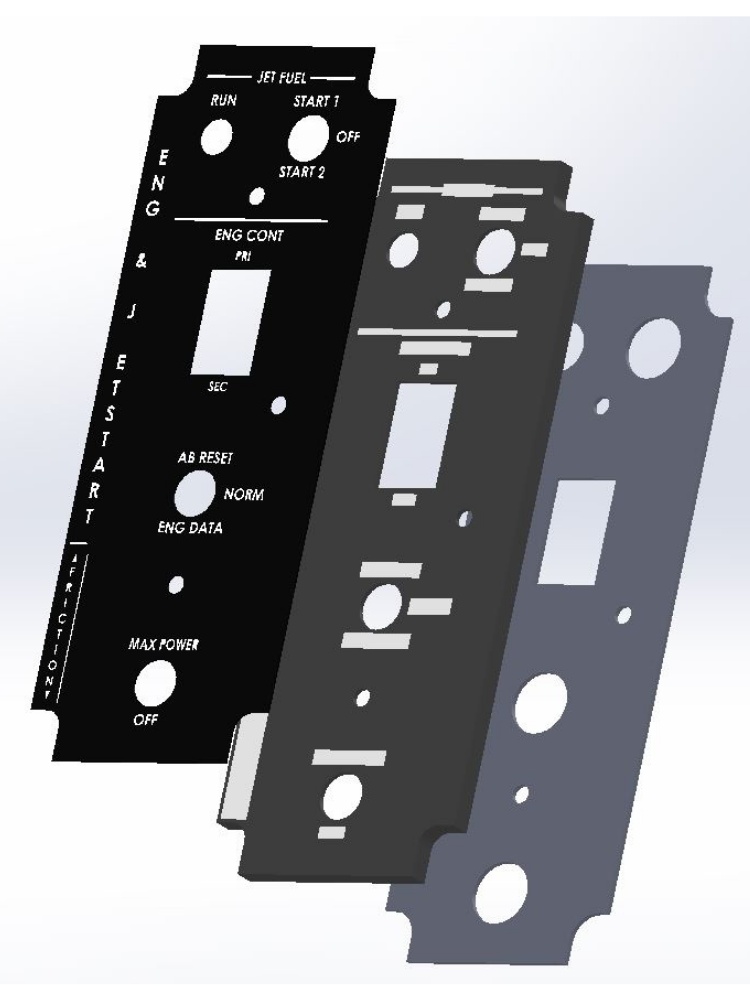

Jet Start Panel

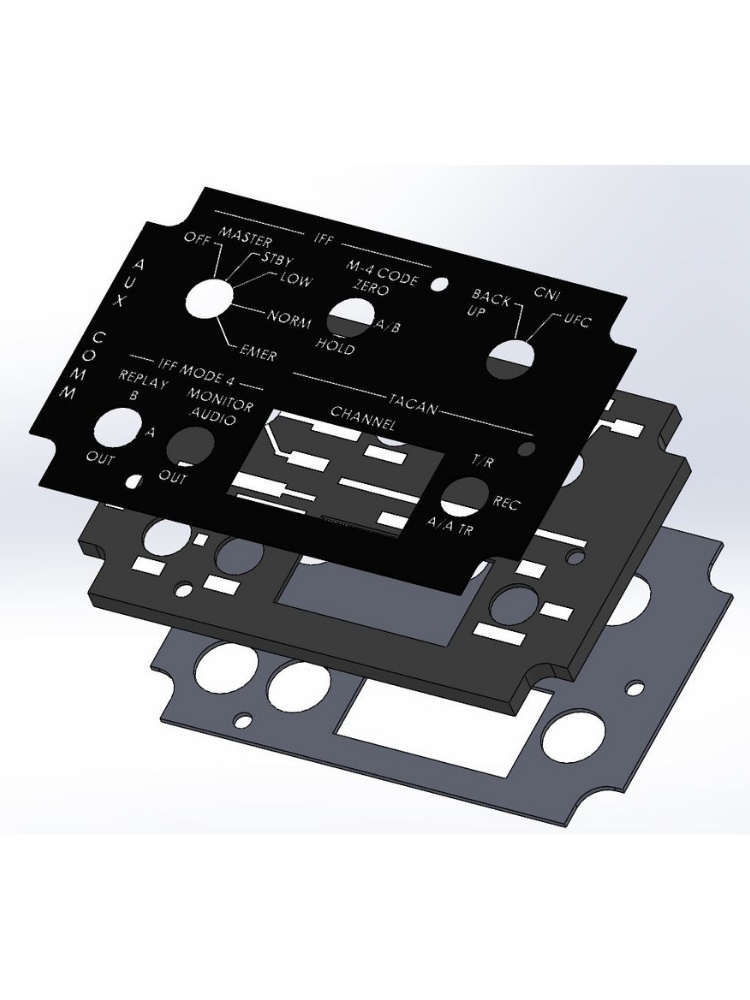

AUX COMM Panel
Fuel Panel

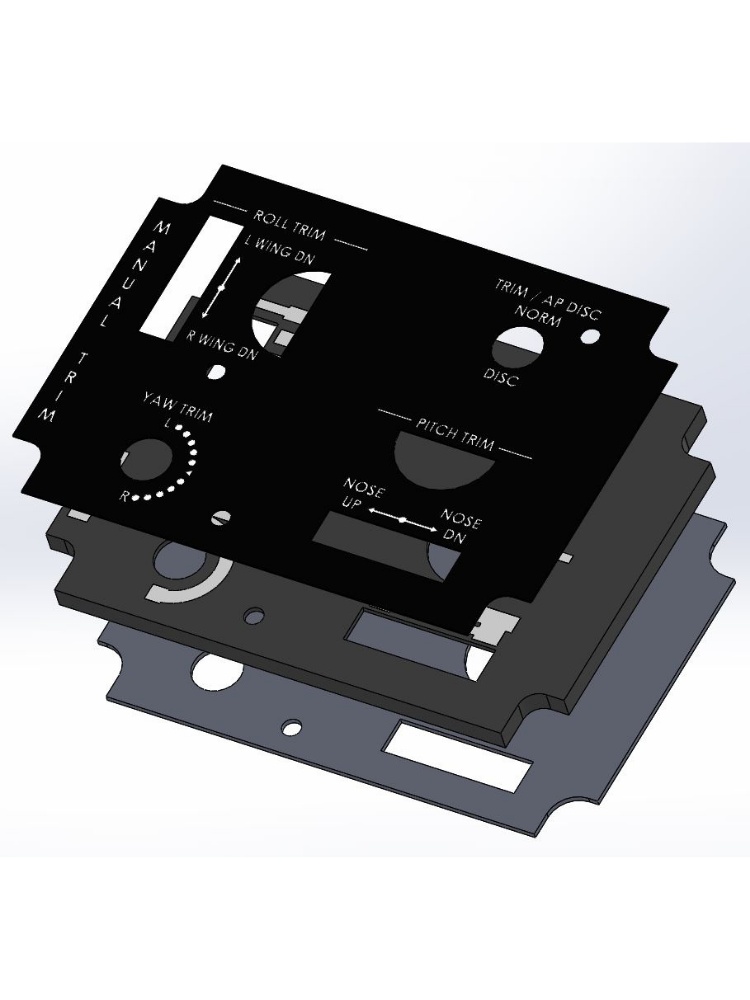

Manuel Trim Panel

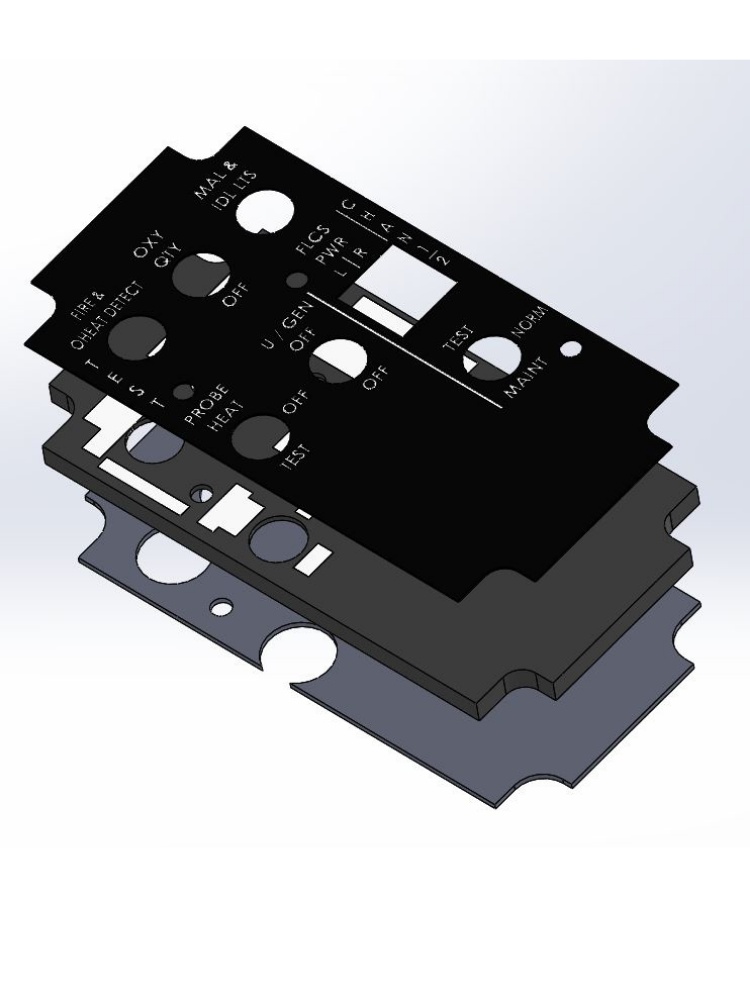

Test Panet

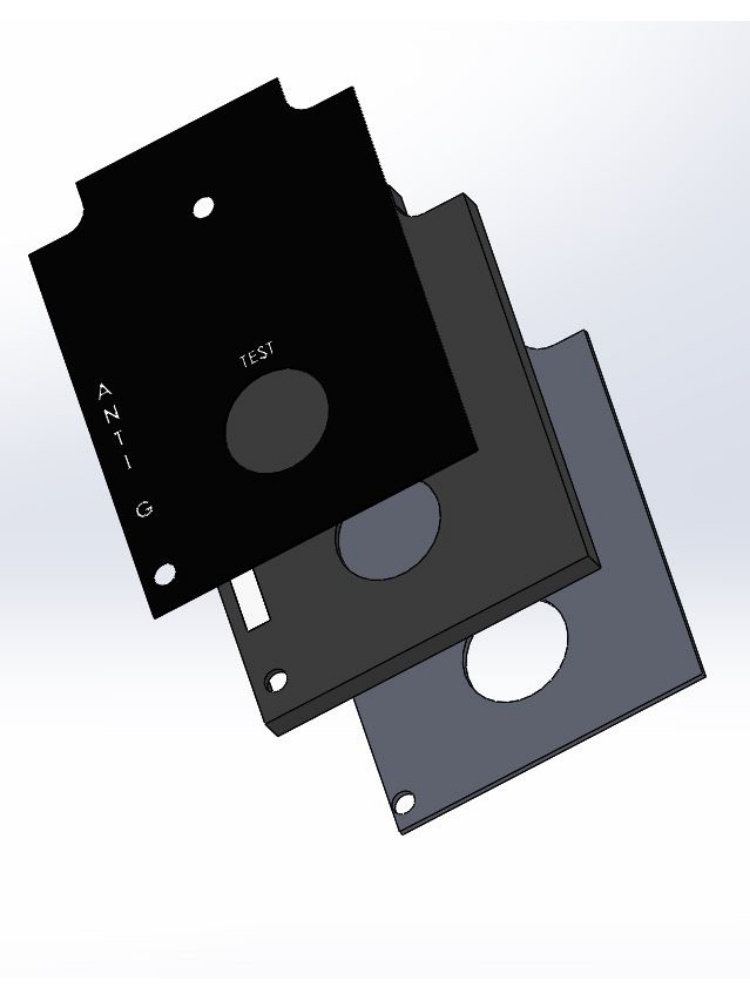

Anti G Panel
File Formats Included:
STL - 64 STL files, in 1 zipped file
STEP - 1 zipped STEP file
PDF - 4 PDF files of the vinyl stickers, in 1 zipped file
Printing:

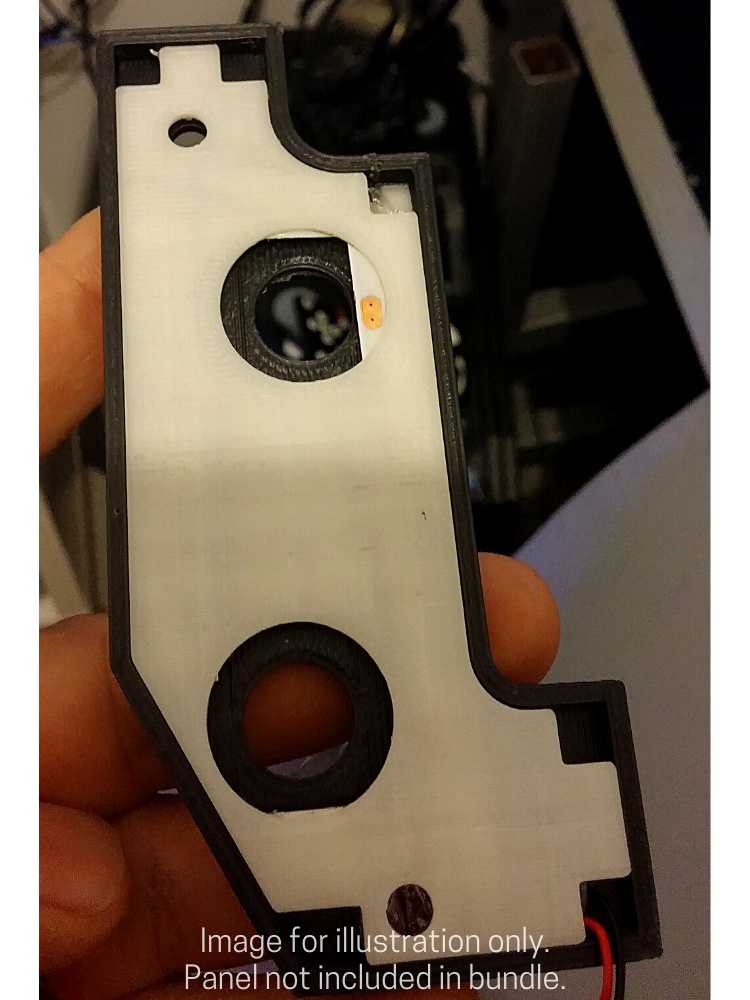

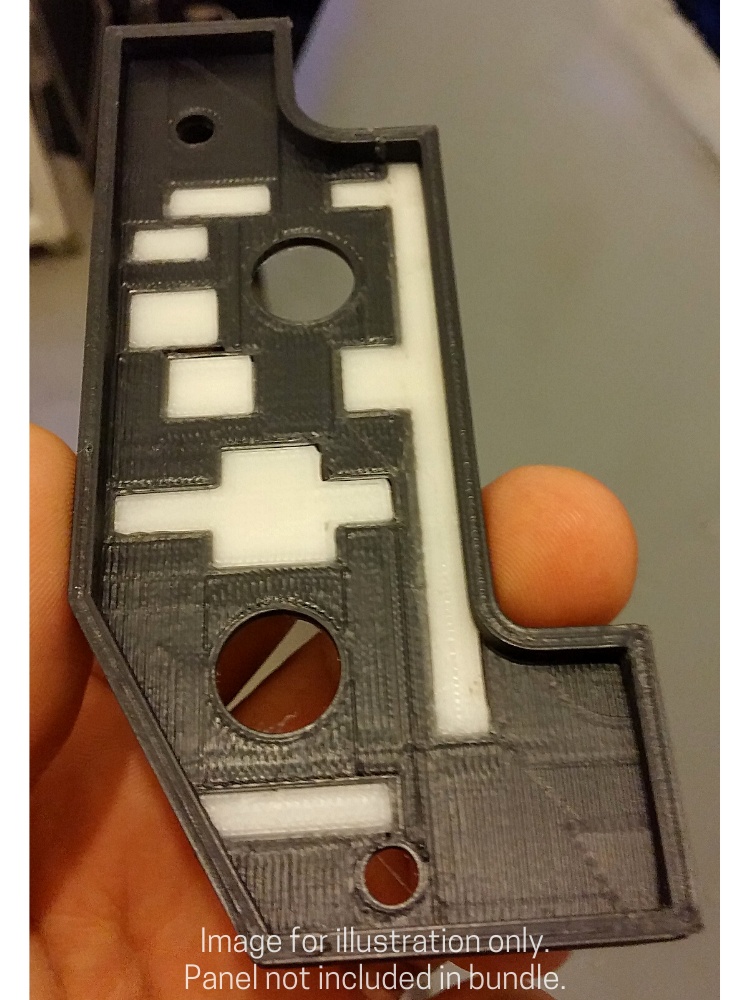

Printing the base of the panels requires a dual head 3D printing, so one head will print the black base and the other will print the white areas.
Printing speed and layer height is according to the printer used.
